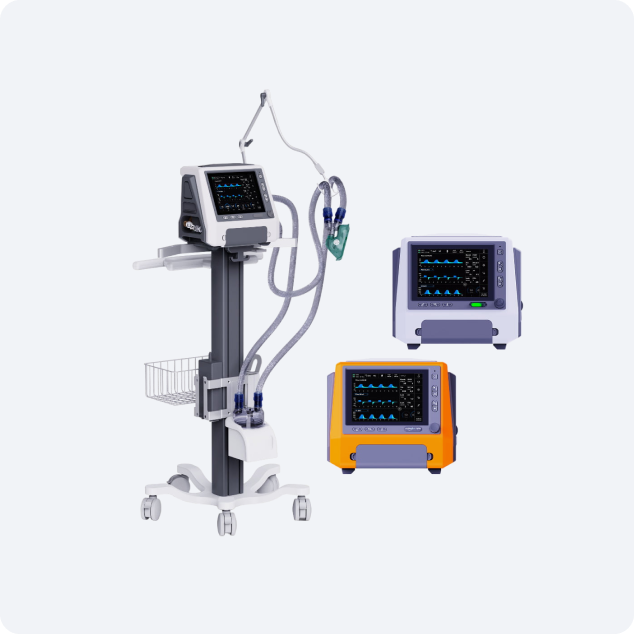

«Mobivent ARM»

Scope of application: intensive care for adult and pediatric patients during transportation outside medical institutions by ambulances and medical transport aircrafts, as well as in operating rooms, resuscitation units and intensive care units, and during transportation within medical institutions.

Technical specifications

Specifications

Drive	turbine
Patient categories	children and adults (from 2 to 300 kg)
Overall dimensions (W × D × H):	working unit 280 × 314 × 210 mm on a trolley 600 × 1650 × 600 mm
Mass of the working unit	6,5 kg
Mass of the working unit on a trolley	17,5 kg
Display	TFT touchscreen
Display size	8,4"
Display resolution	1024x768 pixels
Battery runtime	4 hours from built-in 10 hours from built-in and removable
Ventilation modes	CMV, A/С, SIMV, DUAL-LEVEL, APRV, CPAP, SPONT, HFlow, CPR

Ventilation parameters

Main ventilation parameters

Tidal volume	10–3,000 ml.
Inspiratory pressure	0–85 cm H2O
PEEP	0–50 cm H2O
Ventilation frequency (children)	1-150, l/min.
Ventilation frequency (adults)	1-80, l/min.
Peak flow	260 l/min
Inspiratory time	0,1 - 15,0 s
I:E	1:12 – 10:1
FiO₂	21-100%
Trigger type	flow, pressure, volume
Plateau time	0 – 3 s.
Apnea time	2 - 80 s.

Monitoring parameters

Measurable monitoring parameters

Peak airway pressure	(-20)-85, cm H2O
PEEP	0–50 cm H2O
Inspiratory tidal volume	10-3000 ml
Expiratory tidal volume	10-3000 ml
Ventilation rate per minute	1-180 l/min
I:E	1:150-150:1
SpO₂	70–100%
FiO₂	21–100%
EtCO₂	0-15%
Inspiratory time	0,1-15 s
Plateau pressure	0–85 cm H2O
Peripheral pulse rate	30-250 l/min
Dynamic compliance	0–300 ml/cm H2O
Spontaneous breathing rate	0-150 l/min
